Products You are here£ºHome >> Products >> Card Laminator

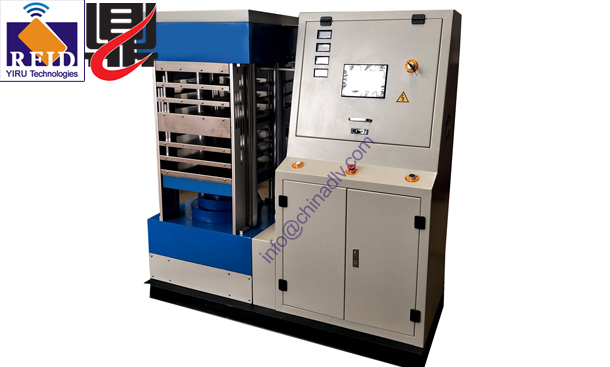

DL5200-6 smart card digital laminator
From£º  Add£º2021-4-9 16:00:29  Onclick£º619

Brand£ºDL5200-6 smart card laminator


Application range£ºSuitable for making all kinds of  Bank Cards, Visa Cards, Master Cards, Indentity Cards, Access Cards, Social Security Cards, Finance & EMV Cards, Double-interface RFID Card,etc. Various kinds of smart cards.

  • Features:

    1.PLC industrial automation system for easy operation & high precision;

    2. Powerful PLC software with fault alarm & fault recording functions,more humane;

    3. International HROA difunctional standard cylinders ,one big cylinders for easy machine maintenance.

    4. Equipped with automatic high pressure oil return, meanwhile automatic pressure relief, manual pressure relief devices are designed for more humanized operation£»

    5. Photoelectric switches are adopted to realize zero pressure lamination and multilevel pressure control, which reduce chip rejection rate effectively ;

    6. Imported aluminum alloy is adopted for fast heating of hot tower & non-rusty cold tower ;

    7. Bold guide columns & thickening beams for greater stability of the machines;

    8. Designed with three daylights (three heating & three cooling).

  • Model DL5200-6

    Suitable for PVC, PC, PET, PETG, etc.

    Cooling Method Water cycling cooling

    Heating Method Electric heating

    Temperature Range 0-200¡æ

    Hydraulic Cylinder Single

    Platen Size 420x520mm

    Daylight 3

    Productivity Approx.  3000 cards/hour

    Voltage 380V 50-60HZ 15KW

    Dimension 1500(L)x700(W)x1700(H)mm

    G.W. 1800 KGS

The previous£º A4 PVC card laminator-DL-712-B
The next£º DL5200-7 Strengthen Laminator
