Brand:PLC Automatic High Speed PVC Card Laminator DL5200AT-7

Specifications£º420mm¡Á520mm

Application range£ºSuitable for all kinds of PVC¡¢PC¡¢PET¡¢PETG, etc. plastic materials, etc.

Introduce:

    The new generation PLC Automatic High Speed PVC Card Laminators, achieves much more functions with automatic transfer materials, time and labor saving, safe and standard production , enterprise maximize benefit,etc.

    This PLC Automatic High Speed PVC Card Laminators adopts the newest automatic transferring technology, which makes material transferring more easily and safely, also saves worker labor intensity efficiently.

Features:

¡ñThis PLC High Speed Laminators breaks with traditional designs and realizes automatic material transfer instead of manual transfer,achieving safe and high  efficiency working.

¡ñ PLC industrial automation control system & touch-screen display are imported, convenient for operation;

¡ñ With its powerful functions, the software can save several lamination parameters automatically.

¡ñ Trouble alarm and record functions make the machine more humanized.

¡ñBoth heating and cooling tower are made of aluminum alloy,which is not easy to rust.

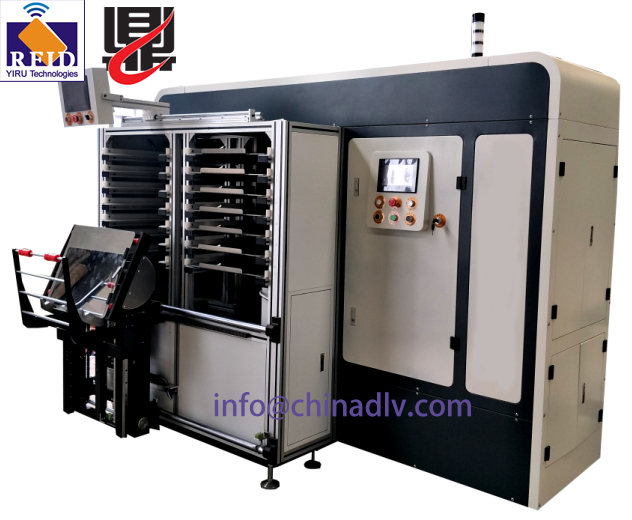

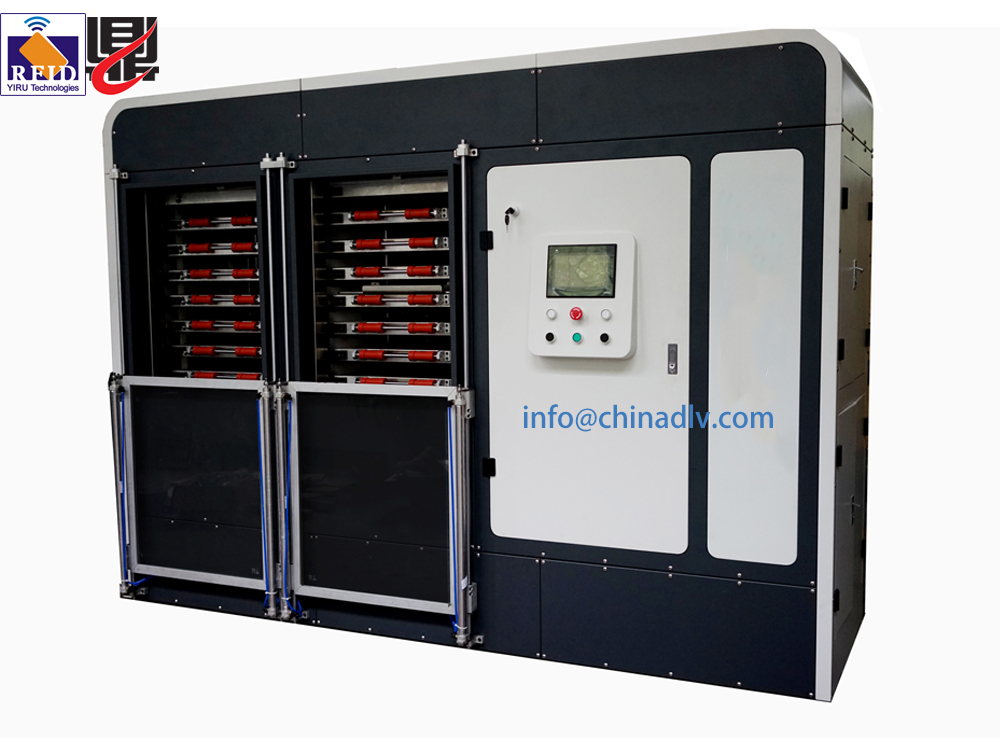

 Pictures for Laminators DL5200AT-7 with loading system:

• Model	DL5200AT-7
  Cooling Method	Water Cooling
  Heating Method	Electric Heating
  Pressure Stages	Heating 12 stages/cooling 5 stages
  Pressure Precision	Ê¿0.1 MPa
  Temperature Precision	0-200¡æ    Ê¿2£¨¡æ£©
  Plate Smoothness	Ê¿0.05mm
  Laminating Plate	Aluminum Alloy
  Hydraulic Cylinder	Single
  Pressure	0-16Mpa
  Platen Size	420mm¡Á520mm
  Opening	7
  Opening Space	50mm
  Plate thickness	45mm
  Electric	380V ,50/60HZ, 30 KW
  Dimension with loading system /without	L2500mm¡ÁW1950mm¡ÁH1870mm L2450mm¡ÁW1000mm¡ÁH1870mm
  Weight with loading system /without	3300KGS 2,600 KGS
  Output	Around 10,000 cards/hour

•
