YH660 Electric Creasing machine
From£º  Add£º2018/8/8 10:17:29  Onclick£º54

Product model:DL-YH660
Performance features:
1.Safety Protective: It has a safety protective cover.
2. Function: Regular indentation, book cover indentation, high efficiency.

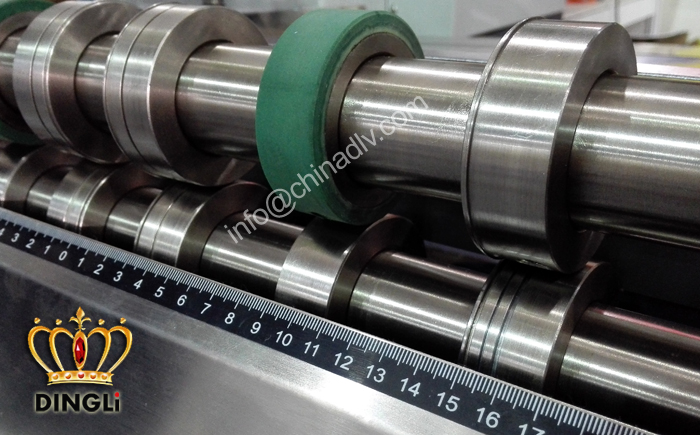

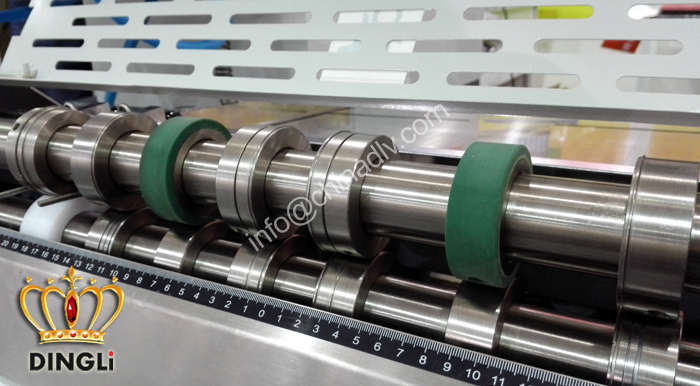

3.Mold:Single line,double line,dotted line,they can be combined and used at the same time.The distance of the molds can be adjusted freely.
Technical parameters:
Standard configuration: 2 sets of double line wheel, 2 sets of single line wheel, 1 set of dotted line wheel, up to 6 lines can be pressed (molds can be prepared according to customized requirements, and the molds can be replaced freely within the standard)
Paper width: minimum 4CM, maximum 64CM
Paper feed: by manual
Feeding speed: about 3000 sheets per hour
Paper thickness: 50-450g
Maximum indentation length: 62CM
Machine power: 220V/50Hz 60W or 110V/60Hz
Machine size: 90 x 72 x 36CM
Machine weight: 53kg
Machine packing: export special fumigation wooden box.
