Products You are here£ºHome >> Products >> Card Laminator

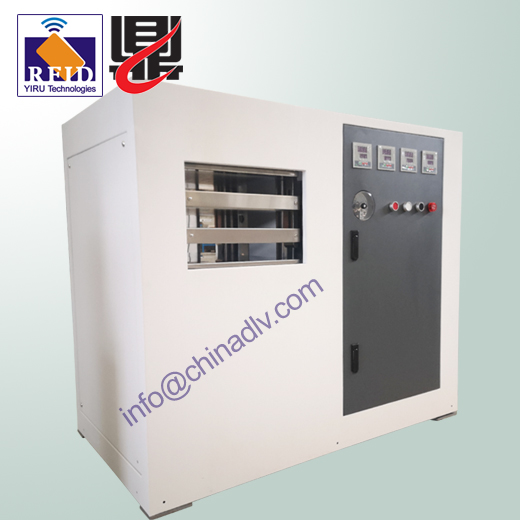

A3 PVC Card Laminating Machine DL-520B
From£º  Add£º2018/8/6 13:35:39  Onclick£º32


The product name:DL520B  PVC Card Laminating Machine

Introduction:

DL520B PVC Card Laminating professional machine is the high efficiency equipment was made for professional manufacturer of IC ID Inlay.

The machine applies industrial grade intelligent digital control mode. It`s easy to set and the control precision is high.

It has high pressure and low pressure double hydraulic. Operation is stable.

Plunger contact area is large.Operation is stable and pressure is uniform.

It has specialized design of parallel degree auto-correction for each plate.

Technical Parameters:

Model

DL520B  Card Laminating Machine

Laminating plate size

420*520mm or any other size in your order

Lamination Opening

3 openings for heating,  3 openings for cooling

Cooling Method

Water Cooling

Heating Method

Electric Heating

Pressure Range

0-16MPa ¡À 0.1MPa

Temperature Precision

0-200¡æ    Ê¿1£¨¡æ£©

Laminating Plate Smoothness

Ê¿0.05mm

Laminating Plate

Aluminum Alloy

Power

15KW

Pwer consumption

2-3KW per hour

Power supply

AC380V    50/60Hz

Productivity

180-360pcs A3+ sheets per hour

Dimension

1500mm*800mm*1650mm

Net weight

1800kg

Gross weight

2000kg
