Products You are here£ºHome >> Products >> Card Laminator

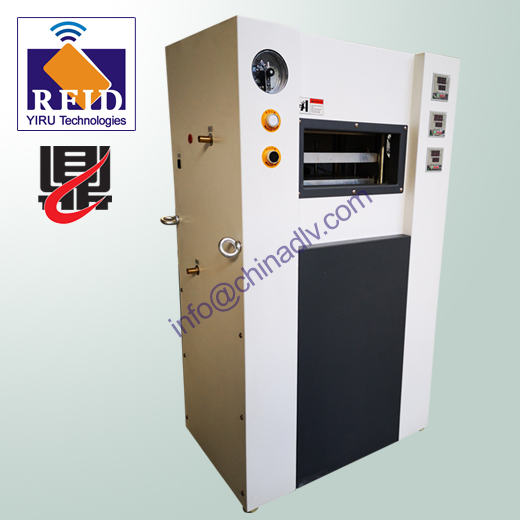

A4 Smat Card Laminator-DL718B
From£º  Add£º2018/8/6 12:08:36  Onclick£º78


The product name:DL718B Smat Card Laminator

Function description:
This model is designed for the quality lamination of various CARDS, including RFID chipcards.Large cooling parallel circuits are specially designed to ensure better cooling.
Technical parameters:
PVC sheet layout 2 * 5
Laminate template size 230 * 315mm
The amount of daylight/distance from 1 tower, 3 hot daylight, 3 cool sunlight, 40 mm
Pressure control accuracy +/- 0.5Mpa
Working pressure 0-16mpa (adjustable)
The temperature control precision of + / - 1 ¡æ
The heating temperature of 200 ¡æ or less
Power 7.5kw (maximum)
AC380V 50/60hz 3-phase 4-wire
The size is about 800 * 600 * 1600mm
The gross weight is about 600 kilos


The previous£º Automatic Card Punching Machine DL-2M
The next£º A3 PVC Card Laminating Machine DL-520B
