Products You are here£ºHome >> Products >> Card Laminator

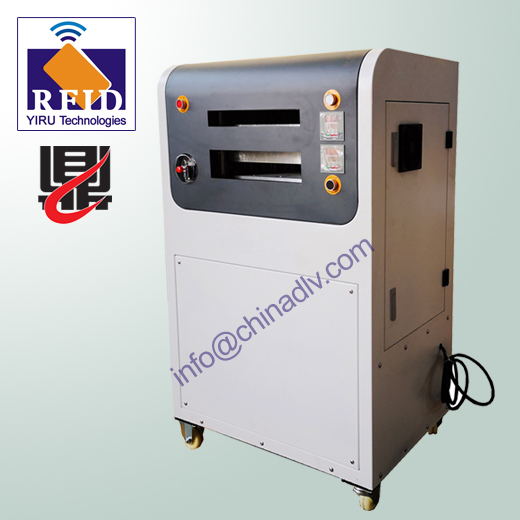

A4 Smat Card Laminator-DL718A
From£º  Add£º2018/8/5 14:23:43  Onclick£º157


The product name:DL718A Smat Card Laminator

Function description:
It is controlled by a PLC system to ensure more accurate control of each lamination stage and more reliable performance.This model is designed for the quality lamination of various CARDS, including RFID chipcards.Large cooling parallel circuits are specially designed to ensure better cooling.
Technical parameters:
PVC sheet layout 2 * 5
Laminate template size 230 * 315mm
The amount of daylight/distance from 1 tower, 3 hot daylight, 3 cool sunlight, 40 mm
Pressure control accuracy +/- 0.5Mpa
Working pressure 0-16mpa (adjustable)
The temperature control precision of + / - 1 ¡æ
The heating temperature of 200 ¡æ or less
Power 7.5kw (maximum)
AC380V 50/60hz 3-phase 4-wire
The size is about 800 * 600 * 1600mm
The gross weight is about 600 kilos


The previous£º A4 Laminator-DL712
The next£º Plastic Card Laminating Machine DL-520A
