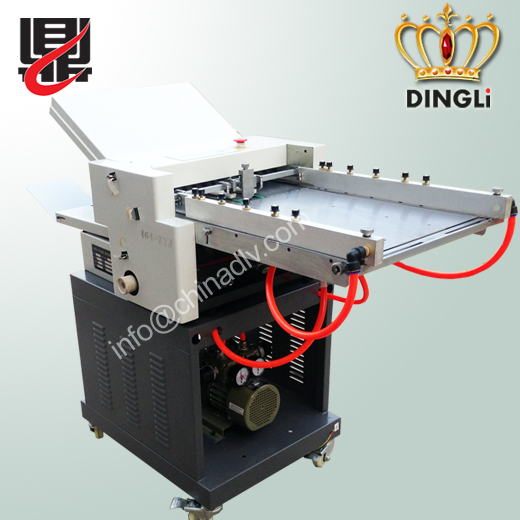

Paper folding machine ZYJ-464 / ZYJ-380
From  Add2018/8/8 14:20:33  Onclick21


Product model: DL-ZYJ-464/DL-ZYJ-380
Product introduction:
1. New folding machine is suitable for 6types of folding automatically.
2. Microcomputer control and LCD display.
3. Simple operation and convenient debugging.
4. Fast speed and high efficiency.


Technical parameters of ZYJ-464:
Maximum origami size: 460 x 600 (mm)
Minimum origami size: 115 x 120 (mm)
Total power: 950 (Kw)
Top speed of folding knife: 130 m /min (30000storkes/min)
The quantitative range: 70-200 (g /O)
Line speed of folding roller: 0--28000 pieces/h (A4) /130m/min
Weight: 270 (kg)
Dimensions: 1350*650*1280mm
Packing: wooden cases for export
Quantity of folding plates: 2 folding plates (4 folding plates can be customized)


Technical parameters of ZYJ-380:
Maximum origami size: 380*470 (mm)
Minimum origami size: 115*120 (mm)
Total power: 950 (Kw)
Top speed of folding knife: 30000 (storkes/min)
The quantitative range: 70-200 (g /O)
Line speed of folding roller: 0--28000 pieces/h (A4) /130m/min
Weight: 220 (kg)
Dimensions: 1280*580*1200mm
Packing: wooden cases for export
Quantity of folding plates: 2 folding plates (4 folding plates can be customized)
