Overview of Functional Applications

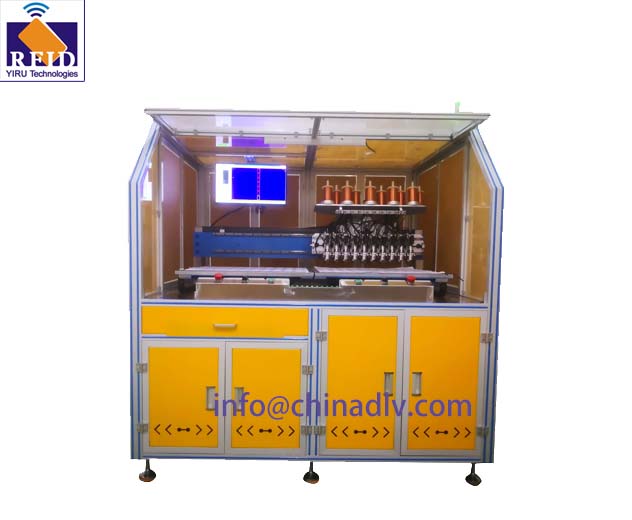

This equipment integrates PC software and a motion control card. The imported servo motor is driven by the motion control card, and it is equipped with a high - precision three - axis positioning system. The advanced domestic ultrasonic antenna - embedding technology is adopted to manufacture induction antennas.

The equipment is equipped with a user - friendly LCD interactive interface, and the operation process is simple and easy to understand. All moving parts adopt a closed - loop motion mode, which significantly improves the safety of the equipment during operation and comprehensively ensures the personal safety of the operators.

Main functions introduced:

1.    Advanced Ultrasonic Antenna - Embedding Technology: The advanced domestic ultrasonic antenna - embedding technology is applied, featuring excellent stability. The equipment is easy to debug and maintain, effectively reducing operation and maintenance costs and time consumption.

2.      Efficient Dual - Plate Alternating Operation Mechanism: The dual - plate design enables alternating motion. The equipment can continue to operate without interrupting the production process when replacing materials. Two materials with a specification of 5X5 (310X495) can be placed on a single plate at the same time, greatly improving production efficiency and meeting the needs of large - scale production.

3.      Highly Flexible Compatibility: According to the personalized needs of customers, the antenna - embedding plates and coil shapes can be flexibly changed to adapt to diverse production requirements, demonstrating strong compatibility and adaptability.

4.      Convenient Material Installation Method: The material installation method combines pin positioning and vacuum adsorption. It is easy to operate and adjust, and the material replacement process is efficient and smooth, effectively shortening the production preparation time.

5.      Precise Imported Servo Positioning System: Equipped with an imported servo positioning system, it ensures that the antenna - embedding accuracy reaches an extremely high level, with excellent repeated positioning accuracy, providing a solid guarantee for the production of high - quality products.

6.      Simple and Intuitive Operation Interface: It is equipped with a simple and clear operation interface, and the operation method is easy to implement, reducing the learning cost of operators and improving operation efficiency.

7.      Comprehensive Safety Protection: All moving parts adopt a closed - loop motion mode, fundamentally eliminating potential safety hazards and creating a safe and reliable working environment for operators.

Technical parameters：
